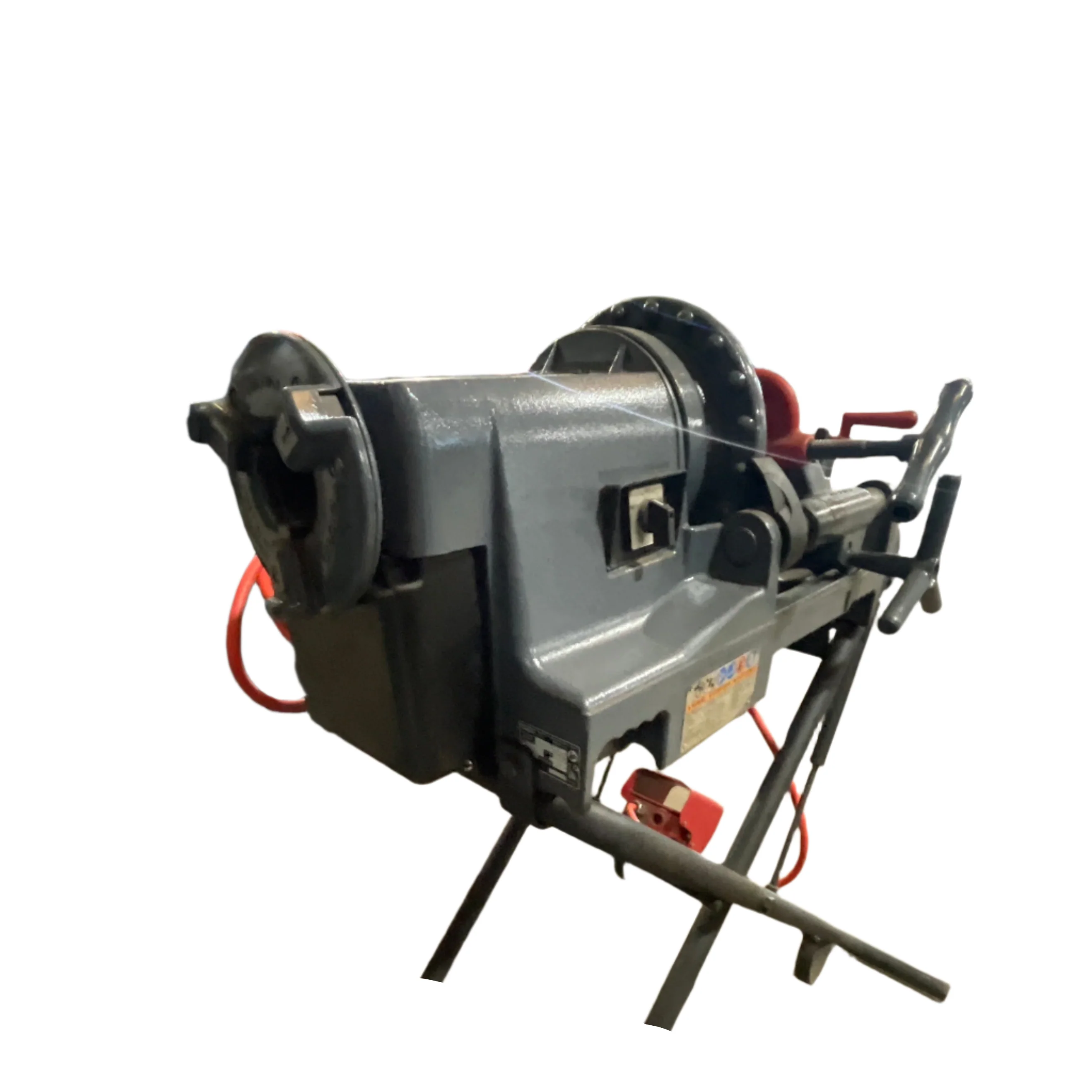

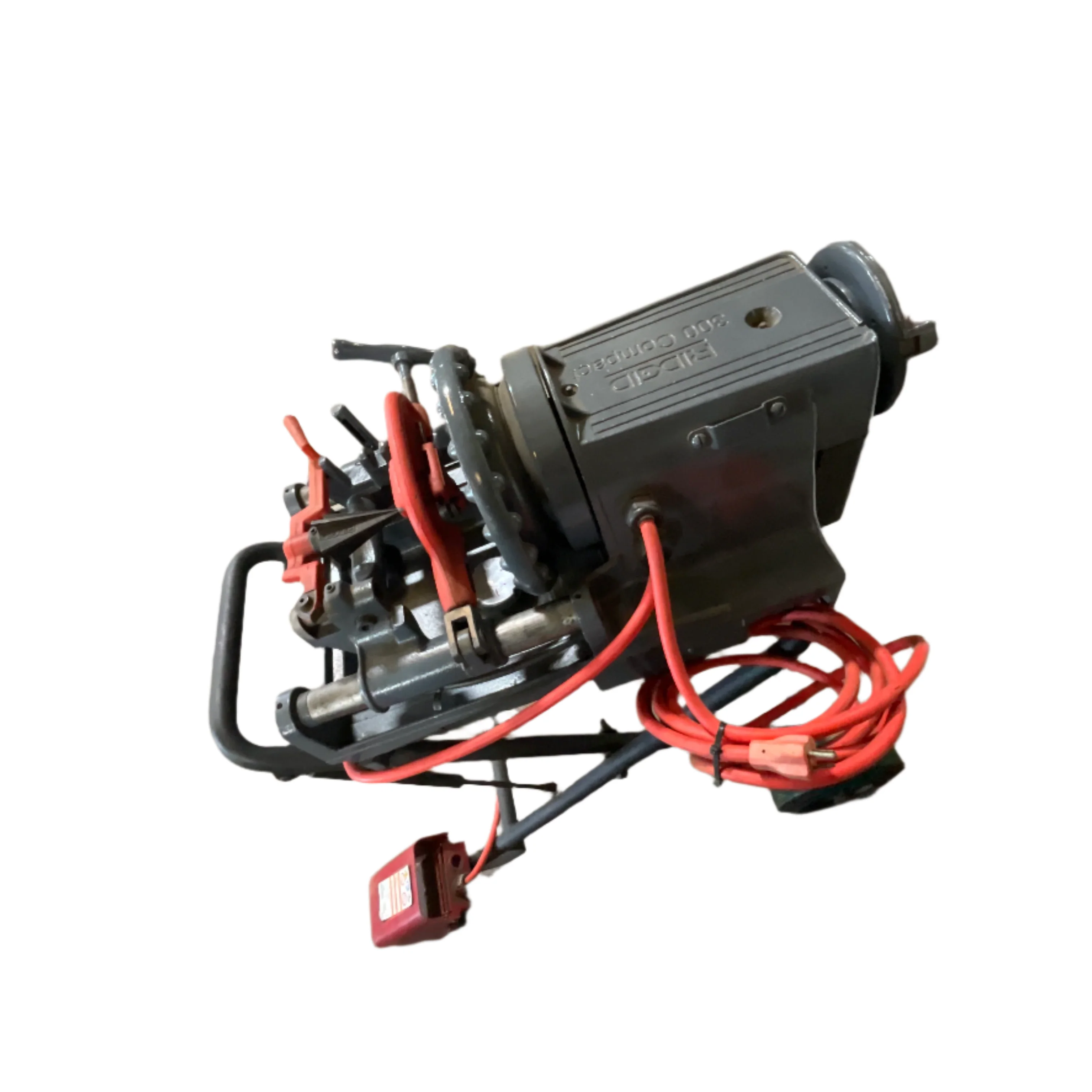

Ridgid 67182 Model 300 Compact Threading Machine for 1/8in to 2in Pipe - Reconditioned
The 300 Compact Threading Machine with Folding Wheel Stand and foot switch is a highly portable 160 lb. field machine, perfect for any application where portability and versatility are needed. Pair with the optional Model 916 Groover Adapter Bracket for grooving of 2 inch through 6-inch pipe.
Specifications
- Pipe Threading Capacity: 1/8 inch to 2 inch (3 mm to 50 mm)
- Bolt Threading Capacity: 1/4 inch to 2 inch (6 mm to 50 mm)
- LH Threads: Yes (units with REV only)
- Rated Motor Power: 1/2 HP (0.37 kW)
- Motor Type: Universal Motor, Single Phase
- Electrical Information (36 RPM): 110-120V, 50/60 Hz, 15A; 220-240V, 50/60 Hz, 8A; 1700W
- Electrical Information (52 RPM): 110-120V, 50/60 Hz, 18A; 2100 W
- Operating Speed: 36 RPM (52 RPM version available)
- Controls: Rotary Type REV/OFF/FWD (2/0/1) switch and ON/OFF foot switch.
- Front Chuck: Hammer-Type with replaceable Rocker-Action Jaw Inserts
- Rear Centering Device: Scroll operated, rotates with Chuck
- Cutter: Model 360, 1/8 inch - 2 inch Full Floating, Self Centering Cutter
- Reamer: Model 344, 1/8 inch - 2 inch
- Oil System Reservoir Capacity: 3.2 qt (3 l), with integrated Gerotor Pump, adjustable flow rate
- Weight (Unit with Die Head): 141 lb (64 kg)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Ridgid 67182 Model 300 Compact Threading Machine for 1/8in to 2in Pipe - Reconditioned
The 300 Compact Threading Machine with Folding Wheel Stand and foot switch is a highly portable 160 lb. field machine, perfect for any application where portability and versatility are needed. Pair with the optional Model 916 Groover Adapter Bracket for grooving of 2 inch through 6-inch pipe.
Specifications
- Pipe Threading Capacity: 1/8 inch to 2 inch (3 mm to 50 mm)
- Bolt Threading Capacity: 1/4 inch to 2 inch (6 mm to 50 mm)
- LH Threads: Yes (units with REV only)
- Rated Motor Power: 1/2 HP (0.37 kW)
- Motor Type: Universal Motor, Single Phase
- Electrical Information (36 RPM): 110-120V, 50/60 Hz, 15A; 220-240V, 50/60 Hz, 8A; 1700W
- Electrical Information (52 RPM): 110-120V, 50/60 Hz, 18A; 2100 W
- Operating Speed: 36 RPM (52 RPM version available)
- Controls: Rotary Type REV/OFF/FWD (2/0/1) switch and ON/OFF foot switch.
- Front Chuck: Hammer-Type with replaceable Rocker-Action Jaw Inserts
- Rear Centering Device: Scroll operated, rotates with Chuck
- Cutter: Model 360, 1/8 inch - 2 inch Full Floating, Self Centering Cutter
- Reamer: Model 344, 1/8 inch - 2 inch
- Oil System Reservoir Capacity: 3.2 qt (3 l), with integrated Gerotor Pump, adjustable flow rate
- Weight (Unit with Die Head): 141 lb (64 kg)
